HOME / PRODUCTS / COAXIALS
Download Datasheet
Response Curves

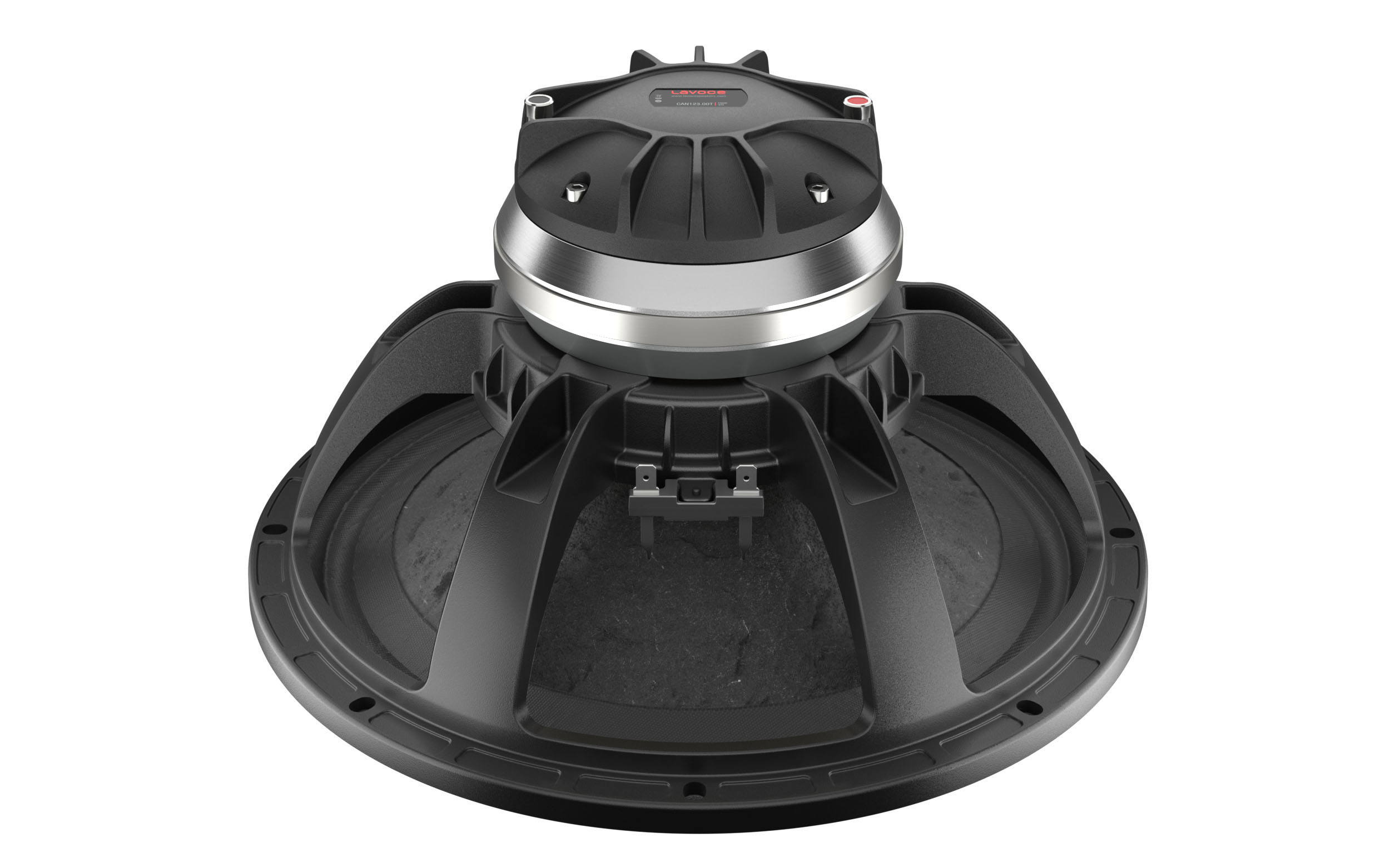

CAN123.00T
"12 COAXIAL
NEODYMIUM COMMON HF\LF MAGNET
ALUMINIUM BASKET DRIVER
FEATURES - 3 INCH LF COPPER VOICE COIL
- 3 INCH HF EDGEWOUND CCA VOICE COIL
- 99 dB/SPL SENSITIVITY
- 700 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED COMMON MOTOR, PATENTED IIS PHASEPLUG AND DIAPHRAGM
- 45 - 18000 Hz FREQUENCY RANGE
- 80° NOMINAL COVERAGE
- COMPOSITE TITANIUM/POLYIMIDE HF DIAPHRAGM
- DOUBLE ALUMINIUM DEMODULATING RING
- COMPACT AND LIGHTWEIGHT DESIGN
GENERAL SPECIFICATIONS - LF
Nominal diameter
mm (in.)
300 (12)
Nominal impedance
Ohm
8
Minimum impedance
Ohm
6,2
Program power
W
700
AES Power rating
W
350
Sensitivity
dB
99,5
Frequency range
Hz
45 ÷ 3500
Voice coil diameter
mm (in.)
75 (3)
Chassis material
Aluminium
Magnet material
Neodymium
Magnet dimensions OD x ID x h
mm (in.)
135 x 85 x 10 (5.31 x 3.35 x 0.39)
Coil material
Copper
Former material
Glass Fiber
LF Cone
WP Treated Paper + WP Front Side
Surround material
Polycotton
Flux density
T
1,2
Xmax
mm (in.)
6 (0.24)
Xmech
mm (in.)
10 (0.39)
Gap height
mm (in.)
8 (0.31)
Voice coil winding height
mm (in.)
16 (0.63)
Driver displacement volume
l (ft³)
2,7 (0.09)
Recommended enclosure
l (ft³)
54 (1.91)
Recommended tuning
Hz
68
GENERAL SPECIFICATIONS - HF
HF Exit
mm (in.)
36 (1.4)
Nominal impedance
Ohm
8
Minimum impedance
Ohm
8
Program power
W
160
AES Power rating
W
80
Sensitivity
dB
105,5
Frequency range
Hz
600 ÷ 18000
Voice coil diameter
mm (in.)
75 (3)
Coil material
Edgewound CCA
Former material
Kapton
HF Dome material
Titanium
Surround material
Polyimide
Flux density
T
1,9
Recommended crossover
Hz
1200
LF SMALL SIGNAL PARAMETERS
DC resistance
Ohm
5,3
Resonance frequency
Hz
46
Moving mass
g (oz)
52,5 (1.85)
Compliance
mm/N
0,23
Force factor
N/A
18,5
Mechanical Q-factor
4,0
Electrical Q-factor
0,23
Total Q-factor
0,22
Equivalent air volume
l (ft3)
91,0 (3.21)
Voice coil inductance
mH
0,50
Diaphragm area
cm2 (in.2)
531 (82.31)
Reference efficiency
3,6
Efficiency bandwidth product
Hz
200
SHIPPING INFORMATION
Net weight
kg (lb.)
4,8 (10.6)
Multipack size (1) W x D x H
mm (in.)
353 x 339 x 220 (13.9 x 13.3 x 8.7)
Multipack weight
kg (lb.)
5,9 (13.0)
DIMENSIONS mm (in.)
