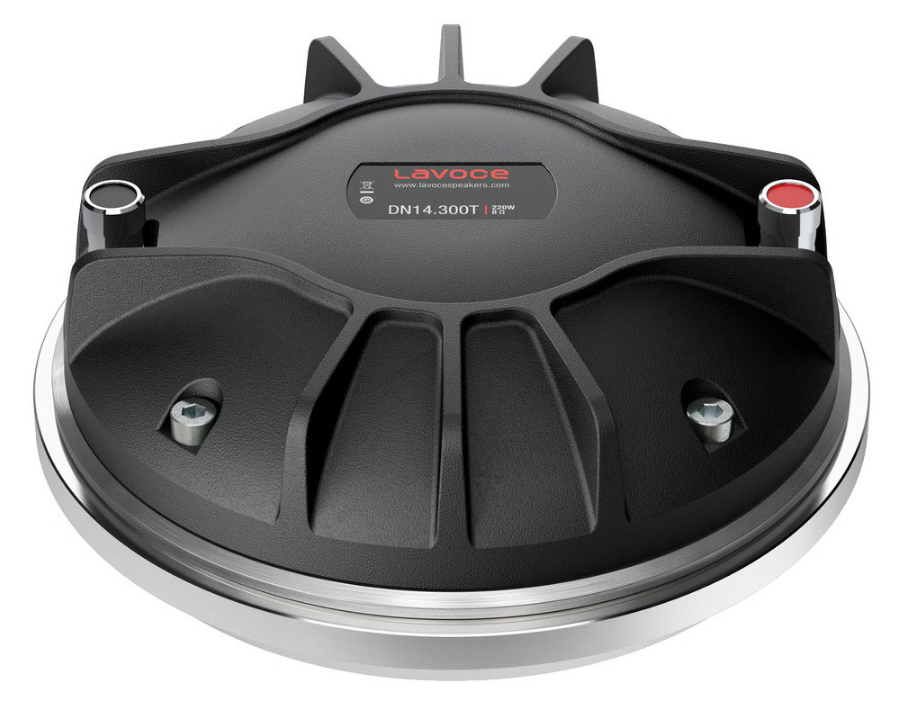

DN14.300T-4

4Ω 8Ω 16Ω

NEODYMIUM MAGNET

- 3 INCH EDGEWOUND CCA VOICE COIL

- 109 dB/SPL SENSITIVITY

- 220 W PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM

- 500 - 20000 Hz FREQUENCY RANGE

- TITANIUM DIAPHRAGM

- PATENTED IIS INTEGRAL INPUT SURFACE PHASEPLUG

Download Datasheet

General Specifications

Throat Diameter

36 mm (1.4 in)

Nominal Impedance

4 ohm

Minimum Impedance

5.8 ohm

Program Power

220 W

AES Power Rating

110 W

Sensitivity

109 dB

Frequency Range

500÷20000 Hz

Voice Coil Diameter

75 mm (2.95 in)

Magnet Material

NEODYMIUM

Coil Material

EDGEWOUND CCA

Former Material

KAPTON

Diaphragm

DOME - TITANIUM

Surround Material

TITANIUM

Magnet OD

130 mm (5.1 in)

Voice Coil Inductance

0.09 mH

Flux Density

2.1 T

Recommended Crossover

1200 Hz

Driver Displacement Volume

0.5 l (0.018 ft³)

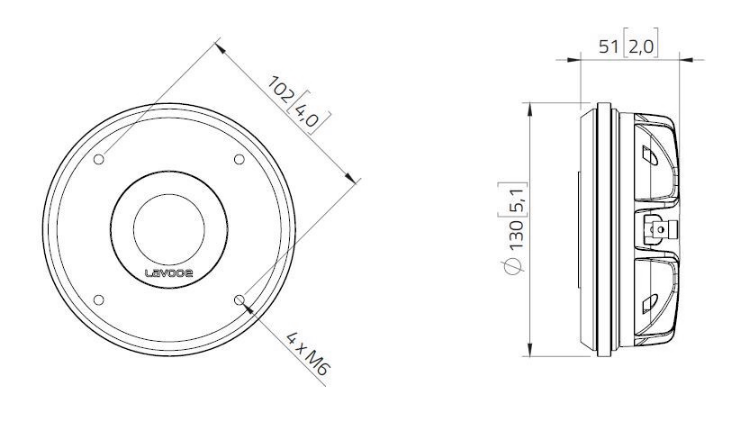

Dimensions

Shipping Information

Net Weight

2.1 kg (4.63 lb)

Multipack Quantity

Multipack size W x D x H

510 mm x 474 mm x 100 mm
(20.1 in x 18.7 in x 3.9 in)

Multipack Weight

17.9 kg (39.46 lb)
